utPLSQL provides the following reporting formats.
Documentation reporter¶
The ut_documentation_reporter is the default reporting format used by the framework.
It provides a human readable test results.
To invoke tests with documentation reporter use one of following calls from sql console (SQLPlus)
exec ut.run();
exec ut.run(ut_documentation_reporter());
You may also invoke unit tests directly from command line by calling.
sqlplus /nolog @ut_run %user%/%pass%@%dbsid%
Invoking tests from command line tool ut_run.sql allows you to track progress of test execution.
In that case, the documentation reporter will provide information about each test that was executed as soon as it's execution finishes.
For more details on using the ut_run.sql script look into ut_run.sql documentation.
The ut_documentation_reporter doesn't accept any arguments.

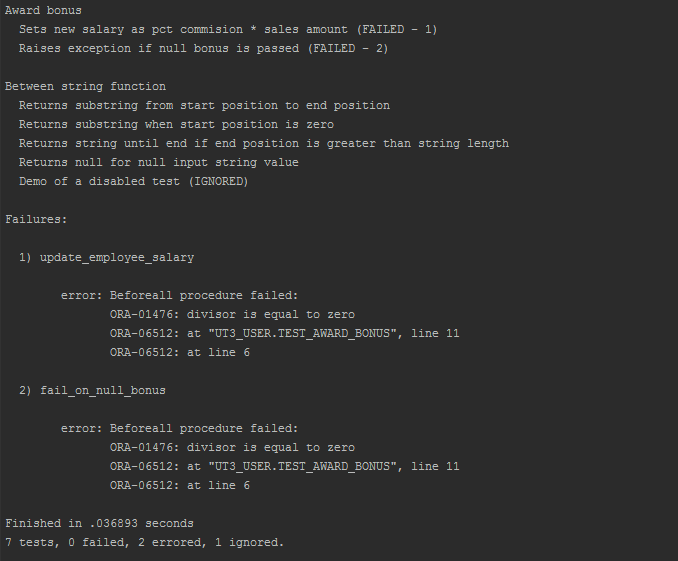

Example outputs from documentation reporter.
The documentation report provides the following information.
- Test suite name or test package name (nested with suitepath if suitepath is used)
- Test description name or test procedure name
- Information about test failing (FAILED - n)
- Information about disabled test (IGNORED)
- List of all errors and failures
- Summary with total number of tests, number of tests with status and timing for the execution
Color output from documentation reporter¶
When invoking tests with documentation reporter and your command line supports ANSICONSOLE (default on Unix), you can obtain the coloured outputs from the documentation reporter.
To invoke tests with documentation reporter in color mode use one of following calls.
exec ut.run(a_color_console=>true);
exec ut.run(ut_documentation_reporter(), a_color_console=>true);

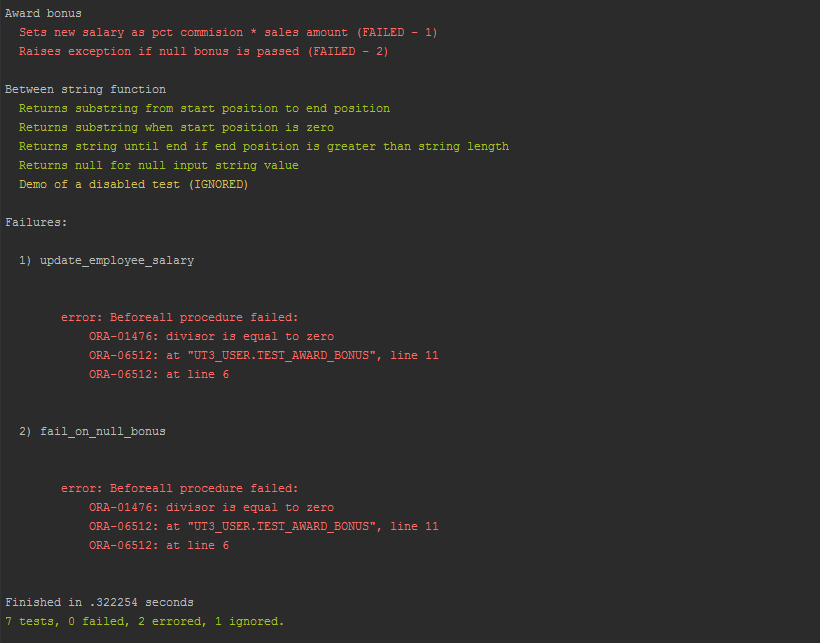

Example outputs from documentation reporter.
XUnit reporter¶
Most of continuous integration servers (like Jenkins) are capable of consuming unit test execution results in XUnit/JUnit format.
The ut_xunit_reporter is producing outcomes as XUnit-compatible XML unit test report, that can be used by CI servers to display their custom reports and provide metrics (like tests execution trends).
Invocation of tests with XUnit reporter.
exec ut.run(ut_xunit_reporter());
The ut_xunit_reporter doesn't accept any arguments.

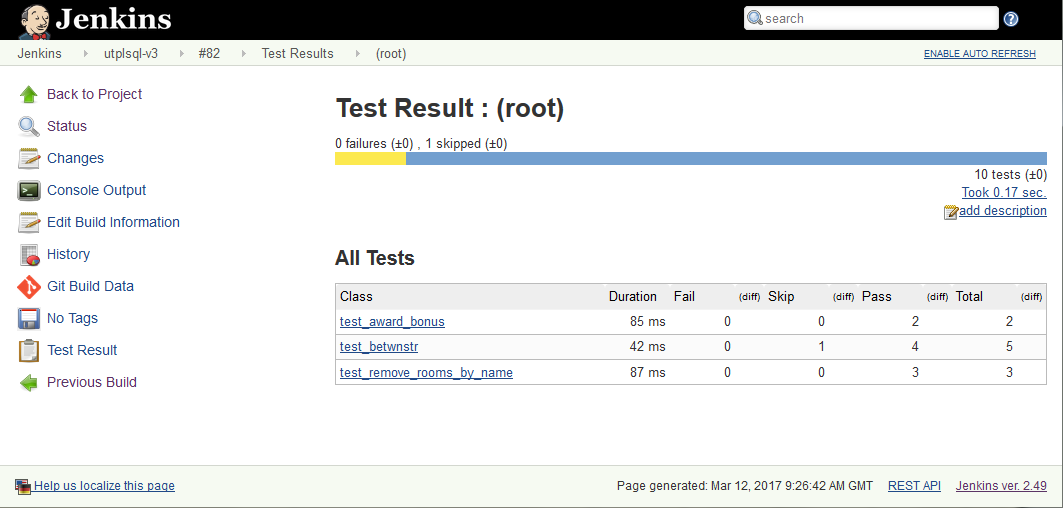

Example of xunit report integrated with Jenkins CI

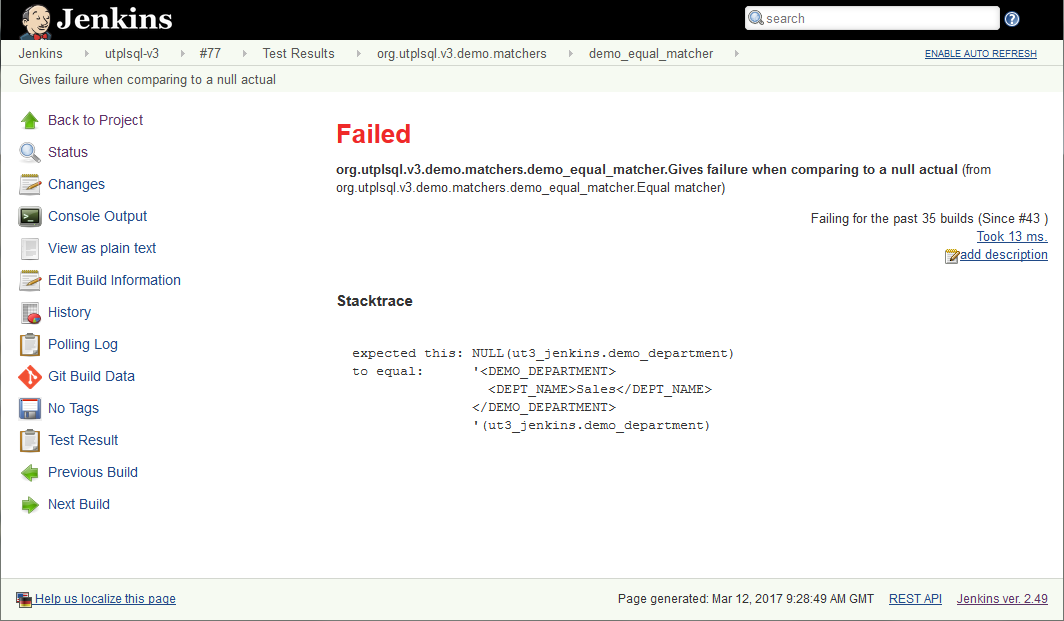

Example of failure report details
Teamcity reporter¶
Teamcity is a CI server by Jetbrains. It supports XUnit reporting and additionally has it's own format of reporting that allows tracking of progress of a CI step/task as it executes.
The TeamCity format developed by Jetbrains is supported by utPLSQL with ut_teamcity_reporter.
Invocation of tests with Teamcity reporter.
exec ut.run(ut_teamcity_reporter());
The ut_teamcity_reporter doesn't accept any arguments.

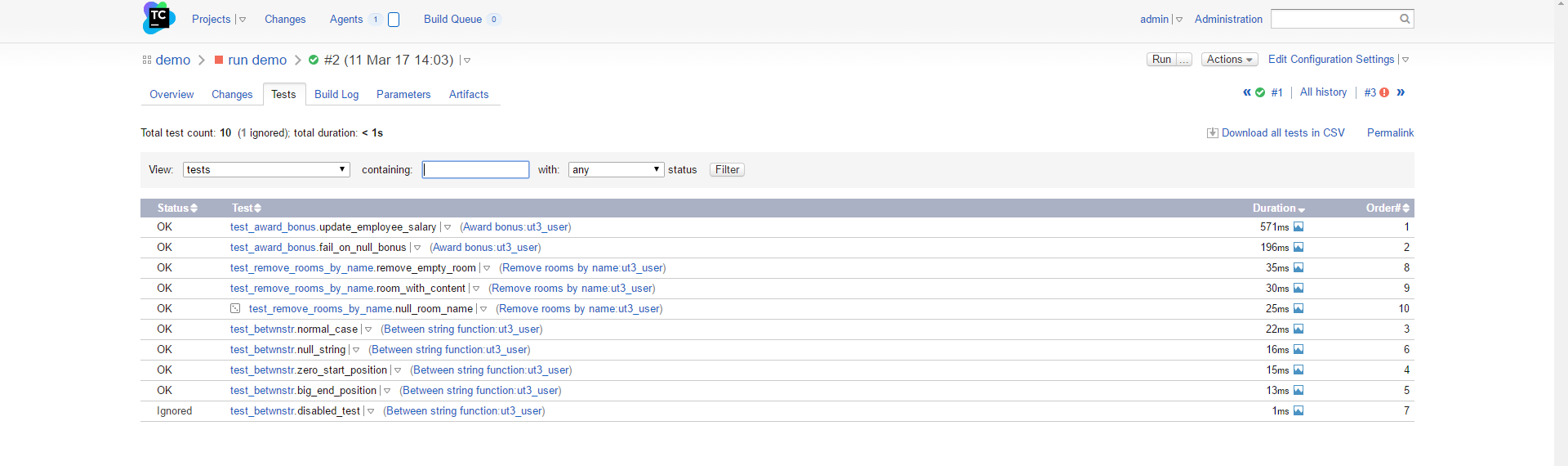

Example of unit test report from Teamcity CI server.

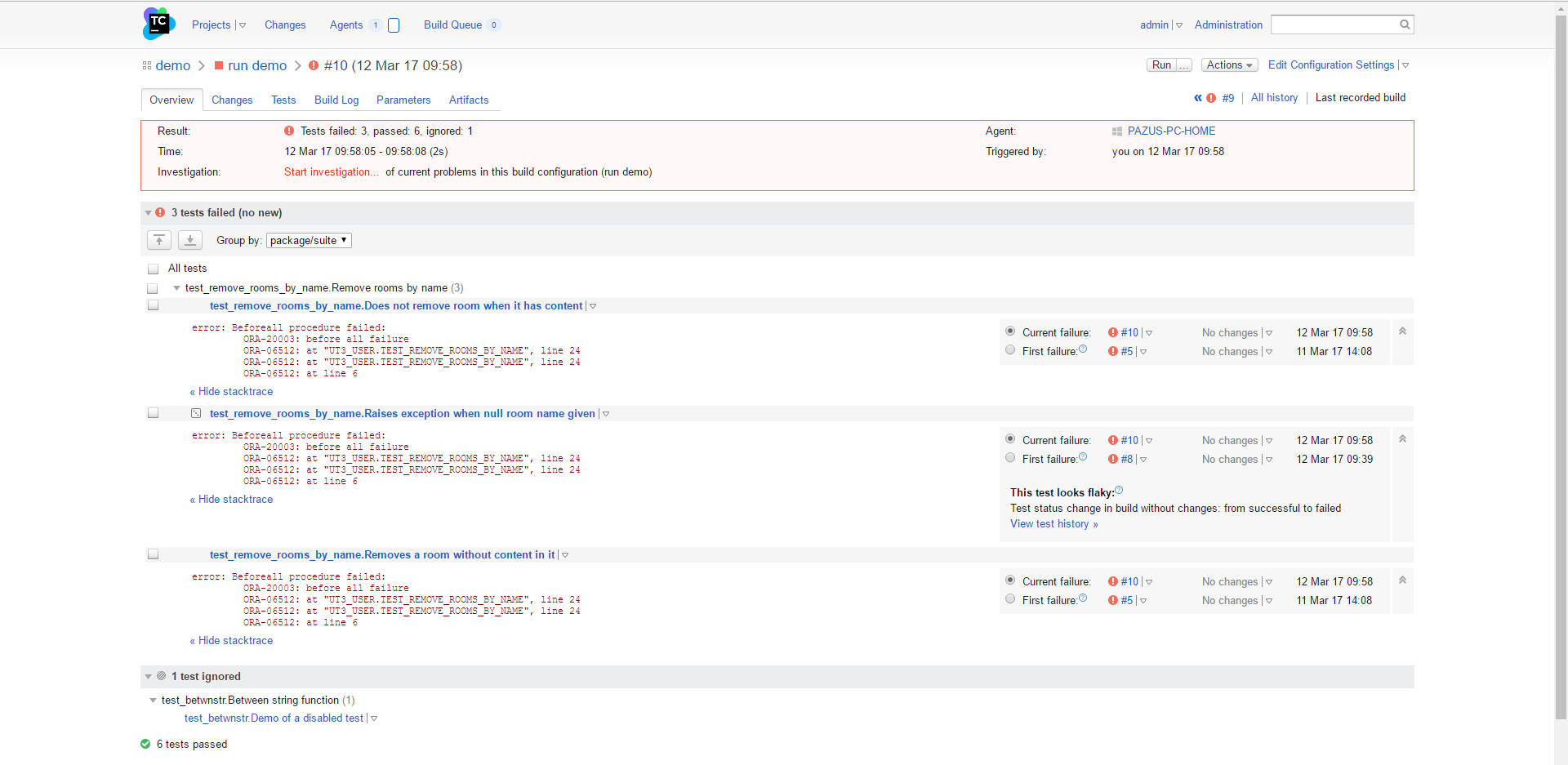

Example of failure report details
Coverage reporters¶
utPLSQL comes with a set of build-in coverage reporters. Have a look into the coverage documentation to learn more about them.
Created: February 26, 2017 02:13:22
