Coverage

utPLSQL comes with a built-in coverage reporting engine. The code coverage reporting is based on the DBMS_PROFILER package provided with Oracle database. Code coverage is gathered for the following source types:

  • package bodies
  • type bodies
  • triggers
  • procedures
  • functions

Note

The package and type specifications are explicitly excluded from code coverage analysis. This limitation is introduced to avoid false-negatives. Typically package specifications contain no executable code. The only exception is initialization of global constants and variables in package specification. Since most package specifications are not executable at all, there is no information available on the number of lines covered and those would be reported as 0% covered, which is not desirable.

To obtain information about code coverage of your unit tests, all you need to do is run your unit tests with one of built-in code coverage reporters. The following code coverage reporters are supplied with utPLSQL:

  • ut_coverage_html_reporter - generates a HTML coverage report providing summary and detailed information on code coverage. The HTML reporter is based on the open-source simplecov-html reporter for Ruby. It includes source code of the code that was covered (if possible)
  • ut_coveralls_reporter - generates a Coveralls compatible JSON coverage report providing detailed information on code coverage with line numbers. This coverage report is designed to be consumed by cloud services like Coveralls
  • ut_coverage_sonar_reporter - generates a Sonar Compatible XML coverage report providing detailed information on code coverage with line numbers. This coverage report is designed to be consumed by services like SonarQube/SonarCloud
  • ut_coverage_cobertura_reporter - generates a basic Cobertura coverage (http://cobertura.sourceforge.net/xml/coverage-04.dtd) report providing detailed information on code coverage with line numbers. This coverage report is designed to be consumed by services like TFS and Jenkins. Check this link for an example of XML generated by Java: https://raw.githubusercontent.com/jenkinsci/cobertura-plugin/master/src/test/resources/hudson/plugins/cobertura/coverage-with-data.xml

Security model

utPLSQL code coverage uses DBMS_PROFILER to gather information about the execution of code under test and therefore follows the DBMS_PROFILER’s Security Model. In order to be able to gather coverage information, the user executing unit tests needs to be either:

  • The owner of the code that is being tested
  • Have the following privileges to be able to gather coverage on code owned by other users:
    • create any procedure system privilege
    • execute privilege on the code that is being tested (not only the unit tests) or execute any procedure system privilege

If you have execute privilege on the code that is being tested, but do not have create any procedure system privilege, then the code that is being tested will be reported as not covered (coverage = 0%). If you have execute privilege only on the unit tests, but do not have execute privilege on the code that is being tested, the code will not be reported by coverage - as if it did not exist in the database. If the code that is being tested is complied as NATIVE, the code coverage will not be reported as well.

Running unit tests with coverage

Using the code coverage functionality is as easy as using any other reporter for the utPLSQL project. You just run your tests from your preferred SQL tool and save the reporter results to a file. All you need to do is pass the constructor of the reporter to your ut.run

Example:

begin
  ut.run(ut_coverage_html_reporter());
end;
/

Executes all unit tests in the current schema, gathers information about code coverage and outputs the HTML text into DBMS_OUTPUT. The ut_coverage_html_reporter will produce an interactive HTML report. You can see a sample of code coverage for the utPLSQL project here

The report provides summary information with a list of source code that was expected to be covered.

Coverage Summary page

The report allow you to navigate to each source file and inspect line by line coverage.

Coverage Details page

Oracle 12.2 extended coverage with profiler and block coverage

Using data collected from profiler and block coverage running parallel we are able to enrich information about coverage. For every line recorded by profiler if we have a partially covered same line in block coverage we will display that information presenting line as partially covered, displaying number of block and how many blocks been covered in that line.The feature will be automatically enabled in the Oracle database version 12.2 and higher, for older versions current profiler will be used.

utPLSQL installation automatically creates tables needed by dbms_plsql_code_coverage on databases in versions above 12c Release 1. Due to security model of dbms_plsql_code_coverage package, utPLSQL grants access to those tables and creates synonyms for those tables. The access and synonyms will be public when using the headless installation. This approach avoids complexity of forcing every user of utPLSQL framework to create tables on their own.

Sample output: Package Coverage Summary

Line Coverage Details

Coverage reporting options

There are two distinct ways to gather code coverage:

  • Coverage on database schema(s)
  • Coverage on project files

Those two options are mutually exclusive and cannot be mixed. By default, when using one of coverage reporters, coverage is gathered on schema(s).

The parameters used to execute tests determine if utPLSQL will be using one approach or the other.

The database schema(s) containing the tests that were executed during the run will be reported on by coverage reporter.

Note

Regardless of the options provided, all unit test packages are excluded from the coverage report. Coverage reports provide information only about the tested code.

The default behavior of coverage reporting can be altered using invocation parameters.

Schema based Coverage

To simply gather coverage for all objects in your current schema execute tests with coverage reporting.

exec ut.run(ut_coverage_html_reporter());

Note

When no filters are used, the size of the coverage report will depend two factors:

  • the type of report (does the report include source code or not)
  • the amount of source code in the database schema

Keep in mind that for schemas containing a lot of code, it can take quite some time to produce the coverage report.

Setting coverage schema(s)

By default, coverage is gathered on the schema(s) derived from suite paths provided to execute tests. This is correct as long as your test packages and tested code share the same schema.

So when you run:

exec ut.run(ut_varchar2_list('user_1','user_2'), ut_coverage_html_reporter());

Coverage will be gathered on both user_1 and user_2 objects.

If your tests live in a different schema from the tested code you may override the default behavior by providing an explicit list of coverage schema names.

In the example below, coverage will still be gathered for user_1 and user_2 objects, even thought we run the tests located in schema unit_test_schema

exec ut.run('unit_test_schema', ut_coverage_html_reporter(), a_coverage_schemes => ut_varchar2_list('user_1','user_2') );

Filtering objects in coverage reports

There are two options that can be used to narrow down the scope of coverage report:

  • a_include_objects - list of [object_owner.].object_name to be included in the coverage report
  • a_exclude_objects - list of [object_owner.].object_name to be excluded from the coverage report

You may specify both include and exclude object lists to gain more control over what needs to be included / excluded from the coverage report.

The object owner is optional in the object list. If you do not provide an object owner, the include/exclude list will be considered for every schema used for coverage gathering (as described above).

Example: Limiting coverage by object name, for tested code located in the same schema as the unit tests.

exec ut.run(ut_varchar2_list('user_1','user_2'), ut_coverage_html_reporter(), a_include_objects=>ut_varchar2_list('award_bonus'));

Executes all tests in schemas: user_1 and user_2. Coverage will only be reported on objects user_1.award_bonus, user_2.award_bonus

Example: Limiting coverage by object name, for tested code located in different schemas than the unit tests.

begin
  ut.run(
    'unit_test_schema', ut_coverage_html_reporter(),
     a_coverage_schemes => ut_varchar2_list('user_1','user_2'),
     a_include_objects => ut_varchar2_list('award_bonus', 'betwnstr')
  );
end;

Executes all tests in schema unit_test_schema. Coverage will only be reported on objects user_1.award_bonus, user_2.award_bonus, user_1.betwnstr, user_2.betwnstr. Objects that do not exist in the database but were specified in a_include_objects will be ignored.

Example: Limiting coverage by object owner and name.

begin
  ut.run(
    'unit_test_schema', ut_coverage_html_reporter(),
     a_include_objects => ut_varchar2_list('user_1.award_bonus','user_2.betwnstr')
  );
end;

Executes all tests in schema unit_test_schema. Coverage will only be reported on objects user_1.award_bonus, user_2.betwnstr

The a_exclude_objects can be used in the same way as a_include_objects.

Example: Excluding objects from coverage report by providing a list of object owner/name to be excluded.

begin
  ut.run(
    'unit_test_schema.test_award_bonus', ut_coverage_html_reporter(),
    a_exclude_objects => ut_varchar2_list('ut3_user.betwnstr')
  );
end;

Executes test test_award_bonus in schema unit_test_schema. Coverage will be reported on all objects in schema ut3_user except the betwnstr object.

Note

Filtering using a_include_objects and a_exclude_objects is only applicable when gathering coverage for a schema. Those filters are not applied when reporting coverage on project files.

Note

When running coverage on schema objects, all source code of package bodies, functions, procedures, type bodies and triggers that were not executed will be reported as having 0% code coverage and all source code lines will show as uncovered. This is different than the behavior when gathering coverage on project files.

Project based Coverage

utPLSQL provides reporters that produce reports consumable by external tools like Sonar/SonarCloud & Coveralls.

Services like Sonar, Coveralls and others perform analysis based on source code in project files. They are abstracted from database, schema names, packages, procedures and functions, and operate on a more generic concept of project source code.

To be able to effectively use reporters dedicated for those tools, utPLSQL provides functionality for mapping database object names to project files.

There are a few significant differences when running coverage on project files compared to running coverage on schema(s).

  • Coverage is only reported on objects that were successfully mapped to project files.
  • Project files (database objects) that were not executed at all are not reported as fully uncovered. It is up to the consumer (Sonar/Coveralls) to determine if project file should be considered as 0% coverage or just ignored.

In order to successfully use coverage on project files, those files must be mapped to database objects.

Though you can gather project based code coverage directly using exec ut.run(...), it is highly recommended to use utPLSQL-cli command line client.

The examples below are using utPLSQL-cli to execute tests and gather coverage information.

File mapping using default parameters

The example below illustrates a directory structure supported by the default parameters of utPLSQL. The structure represents a multi-schema project with file names indicating object owner.

C:
  \my_project
    \sources
      \hotel.add_rooms_content.prc
      \hotel.remove_rooms_by_name.prc
      \hotel.rooms.tbl
      \hr.award_bonus.prc
      \hr.betwnstr.fnc
      \hr.employees_test.tbl
    \tests
      \hotel.test_add_room_content.pkb
      \hotel.test_add_room_content.pks
      \hotel.test_remove_rooms_by_name.pkb
      \hotel.test_remove_rooms_by_name.pks
      \hr.test_award_bonus.pkb
      \hr.test_award_bonus.pks
      \hr.test_betwnstr.pkb
      \hr.test_betwnstr.pks

By default, utPLSQL will convert file paths into database objects using the following regular expression /((\w+)\.)?(\w+)\.(\w{3})$

  • object owner (if it is present) is identified by the expression in the second set of brackets
  • object name is identified by the expression in the third set of brackets
  • object type is identified by the expression in the fourth set of brackets

Note

utPLSQL will replace any ‘' with ‘/’ for the purpose of mapping files to objects. The paths shown in the results will remain (contain ‘' where it was present). This is done to simplify the syntax of regular expressions. Regular expression will always use ‘/’ as a directory separator on a file path regardless of whether you’re on a Windows or Unix system.

Note

Below examples assume that you have downloaded latest version of utPLSQL-cli, extracted it into your projects root directory (my_project) and placed ojdbc8.jar and orai18n.jar files in utPLSQL-cli\lib directory. The examples assume that you run the utPLSQL-cli from my_project directory.

Windows:

utPLSQL-cli\bin\utplsql run test_runner/pass@db_host:db_port/db_service_name ^
 -p=hr,hotel ^
 -source_path=sources ^
 -test_path=tests ^
 -f=ut_coverage_html_reporter -o=coverage.html ^
 -f=ut_sonar_test_reporter    -o=test_results.xml

Bash:

utPLSQL-cli/bin/utplsql run test_runner/pass@db_host:db_port/db_service_name \
 -p=hr,hotel \
 -source_path=sources \
 -test_path=tests \
 -f=ut_coverage_html_reporter -o=coverage.html \
 -f=ut_sonar_test_reporter    -o=test_results.xml

The above commands will:

  • connect as user test_runner
  • run all utPLSQL v3 tests for users hr, hotel
  • map database code to project files in sources directory and save code coverage results into coverage.html
  • map test packages to project files in tests directory and save test results into test_results.xml

To better understand the default regular expression used, have a look here.

Tested code is mapped to files in coverage.html

coverage.html

Unit test code is mapped to files in test_results.xml

coverage.html

Using custom regular expressions

If your project directory structure is different, you can use additional configuration parameters to tell utPLSQL how the project files are to be mapped into database objects.

Example: Using custom regular expressions on a multi-schema project with separate directories for each object owner.

C:
  \my_project
    \sources
      \hotel
        \add_rooms_content.prc
        \remove_rooms_by_name.prc
        \rooms.tbl
      \hr
        \award_bonus.prc
        \betwnstr.fnc
        \employees_test.tbl
    \tests
      \hotel
        \test_add_room_content.pkb
        \test_add_room_content.pks
        \test_remove_rooms_by_name.pkb
        \test_remove_rooms_by_name.pks
      \hr
        \test_award_bonus.pkb
        \test_award_bonus.pks
        \test_betwnstr.pkb
        \test_betwnstr.pks

The command below will gather coverage and map files to database objects using custom regular expression. Note that the owner/name/type subexpressions don’t need to be explicitly specified if they are same as default values ( 2/3/4 ). In the below example, they were specified explicitly only for source_path, test_path doesn’t have subexpressions specified and so they are default (2/3/4).

Windows:

utPLSQL-cli\bin\utplsql run test_runner/pass@db_url ^
 -p=hr,hotel ^
 -source_path=sources ^
 -regex_expression="/((\w+)/)?(\w+)\.(\w{3})$" ^
 -owner_subexpression=2 ^
 -name_subexpression=3 ^
 -type_subexpression=4 ^
 -test_path=tests -regex_expression="/((\w+)/)?(\w+)\.(\w{3})$" ^
 -f=ut_coverage_html_reporter -o=coverage.html ^
 -f=ut_sonar_test_reporter -o=test_results.xml ^

Bash:

utPLSQL-cli/bin/utplsql run test_runner/pass@db_url \
 -source_path=sources \
 -regex_expression="/((\w+)/)?(\w+)\.(\w{3})$" \
 -owner_subexpression=2 \
 -name_subexpression=3 \
 -type_subexpression=4 \
 -test_path=tests -regex_expression="/((\w+)/)?(\w+)\.(\w{3})$" \
 -owner_subexpression=2 \
 -name_subexpression=3 \
 -type_subexpression=4 \
 -f=ut_coverage_html_reporter -o=coverage.html \
 -f=ut_sonar_test_reporter -o=test_results.xml

You can specify different mapping rules for source files and for test files - see utPLSQL-cli readme for details.

To better understand the regular expression used, have a look here.

Tested code is mapped to files in coverage.html

coverage.html

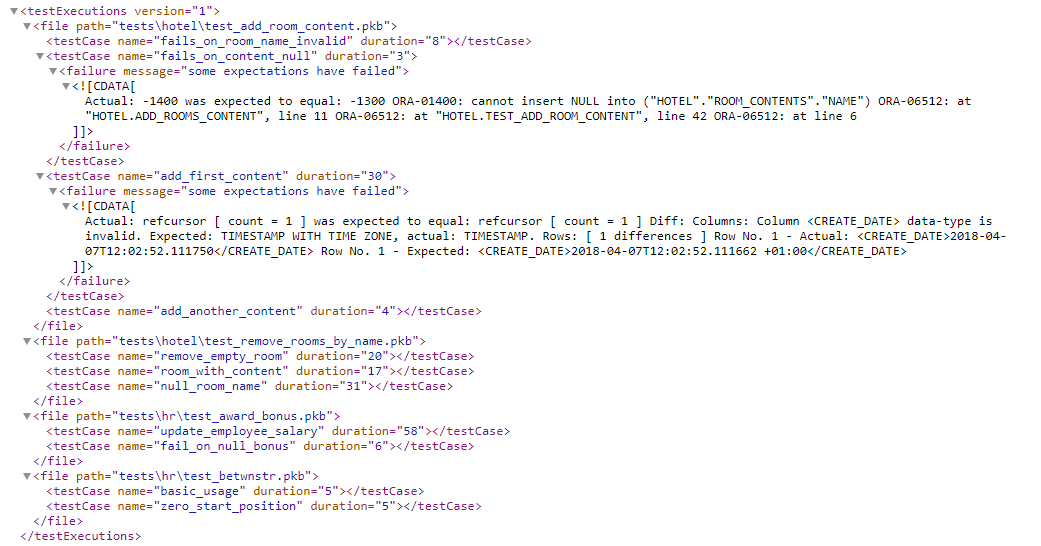

Unit test code is mapped to files in test_results.xml

coverage.html

Explicitly specifying object owner

When dealing with projects that operate within a single schema the project structure probably doesn’t indicate the owner. In such scenarios, you can explicitly specify the object owner for both tests and source code.

Example: Single-schema project - no indication of object owner

C:
  \my_project
    \sources
      \betwnstr.fnc
    \tests
      \test_betwnstr.pkb
      \test_betwnstr.pks

The command below will gather coverage and map files to database objects. For the database objects mapped to souces directory user code_owner will be used. For the database objects mapped to tests directory user tests_owner will be used.

Windows:

utPLSQL-cli\bin\utplsql run test_runner/pass@db_url ^
 -p=tests_owner ^
 -source_path=sources -owner=code_owner ^
 -test_path=tests     -owner=tests_owner ^
 -f=ut_coverage_html_reporter -o=coverage.html ^
 -f=ut_sonar_test_reporter    -o=test_results.xml

Bash:

utPLSQL-cli/bin/utplsql run test_runner/pass@db_url \
 -p=tests_owner \
 -source_path=sources -owner=code_owner \
 -test_path=tests     -owner=tests_owner \
 -f=ut_coverage_html_reporter -o=coverage.html \
 -f=ut_sonar_test_reporter    -o=test_results.xml

Note

When the project folder structure does not provide any information about source code owner and test owner, you can specify the owner for tests and owner for code explicitly. Such project configuration supports only single-owner for source code and single owner for tests.

Tested code is mapped to files in coverage.html

coverage.html

Unit test code is mapped to files in test_results.xml

coverage.html

Custom mapping of object types

By default, when mapping project files to database objects, utPLSQL will identify the object type by file extension.

The table below represents the default mapping of file extensions to database object types.

file extension object type
tpb type body
pkb package body
bdy package body
trg trigger
fnc function
prc procedure

If your project naming convention differs and your file extensions do not match the above, or you simply name all of your files with .sql suffix, you can still use utPLSQL, but you need to provide custom mapping for object types.

Example: Multi-schema project with separate directories for each object owner and object type

C:
  \my_project
    \sources
      \hotel
        \functions
        \packages
        \packages_bodies
        \procedures
          \add_rooms_content.sql
          \remove_rooms_by_name.sql
        \tables
          \rooms.sql
        \triggers
        \types
        \type_bodies
      \hr
        \functions
          \betwnstr.sql
        \packages
        \package_bodies
        \procedures
          \award_bonus.sql
        \tables
          \employees_test.sql
        \triggers
        \types
        \types_bodies
    \tests
      \hotel
        \packages
          \test_add_room_content.sql
          \test_remove_rooms_by_name.sql
        \packages_bodies
          \test_add_room_content.sql
          \test_remove_rooms_by_name.sql
      \hr
        \packages
          \test_award_bonus.sql
          \test_betwnstr.sql
        \packages_bodies
          \test_award_bonus.sql
          \test_betwnstr.sql

Windows:

utPLSQL-cli\bin\utplsql run test_runner/pass@db_url ^
 -p=hr,hotel ^
 -source_path=sources ^
 -regex_expression="/(\w+)/(\w+)/(\w+)\..{3}$" ^
 -type_mapping="packages_bodies=PACKAGE BODY/types_bodies=TYPE BODY/triggers=TRIGGER/procedures=PROCEDURE/functions=FUNCTION" ^
 -owner_subexpression=1 ^
 -name_subexpression=3 ^
 -type_subexpression=2 ^
 -test_path=tests -regex_expression="/(\w+)/(\w+)/(\w+)\..{3}$" ^
 -type_mapping="packages_bodies=PACKAGE BODY/types_bodies=TYPE BODY/triggers=TRIGGER/procedures=PROCEDURE/functions=FUNCTION" ^
 -owner_subexpression=1 ^
 -name_subexpression=3 ^
 -type_subexpression=2 ^
 -f=ut_coverage_html_reporter -o=coverage.html ^
 -f=ut_sonar_test_reporter -o=test_results.xml

Bash:

utPLSQL-cli/bin/utplsql run test_runner/pass@db_urll \
 -p=hr,hotel \
 -source_path=sources \
 -regex_expression="/(\w+)/(\w+)/(\w+)\..{3}$" \
 -type_mapping="packages_bodies=PACKAGE BODY/types_bodies=TYPE BODY/triggers=TRIGGER/procedures=PROCEDURE/functions=FUNCTION" \
 -owner_subexpression=1 \
 -name_subexpression=3 \
 -type_subexpression=2 \
 -test_path=tests -regex_expression="/(\w+)/(\w+)/(\w+)\..{3}$" \
 -type_mapping="body=PACKAGE BODY/type_body=TYPE BODY/trigger=TRIGGER" \
 -owner_subexpression=1 \
 -name_subexpression=3 \
 -type_subexpression=2 \
 -f=ut_coverage_html_reporter -o=coverage.html \
 -f=ut_sonar_test_reporter -o=test_results.xml

The parameter type_mapping accepts a list of a key-value pairs representing a mapping of regex subexpression to database object type.

To better understand the regular expression used, have a look here.

Tested code is mapped to files in coverage.html

coverage.html

Unit test code is mapped to files in test_results.xml

coverage.html

Object-file mapping rules

In order to allow deterministic and accurate mapping of database source-code into project files, the project directory and file structure needs to meet certain criteria.

  • Source code is kept separate from test code (separate directories)
  • Each database (source-code) object is stored in individual file. Package/type specification is kept separate from it’s body.
  • File name (file path) contains name of database object
  • Each file-path clearly identifies object type (by file extension)
  • Each file contains representation of database object “as is”. No extra commands (like set echo off ALTER SESSION SET PLSQL_CCFLAGS = 'debug:TRUE';) or blank lines are present before CREATE TYPE,CREATE TYPE etc.
  • When project is spanning across multiple database schemes, each file-path clearly and uniformly identifies object owner

File mapping from SQL

The ut.run command provides interface to map project into database objects when executing tests. While it is much easier to perform mapping directly from command line, it is possible to achieve similar functionality from any SQL client. The main differences when using the ut.run(...) command, will be:

  • you can only use single reporter and therefore will get only one report from test execution
  • you need to provide fill list of project files rather than point to sources and tests directories

Example project directory structure.

C:
  \my_project
    \sources
      \hotel
        \functions
        \packages
        \packages_bodies
        \procedures
          \add_rooms_content.sql
          \remove_rooms_by_name.sql
        \tables
          \rooms.sql
        \triggers
        \types
        \type_bodies
      \hr
        \functions
          \betwnstr.sql
        \packages
        \package_bodies
        \procedures
          \award_bonus.sql
        \tables
          \employees_test.sql
        \triggers
        \types
        \types_bodies
    \tests
      \hotel
        \packages
          \test_add_room_content.sql
          \test_remove_rooms_by_name.sql
        \packages_bodies
          \test_add_room_content.sql
          \test_remove_rooms_by_name.sql
      \hr
        \packages
          \test_award_bonus.sql
          \test_betwnstr.sql
        \packages_bodies
          \test_award_bonus.sql
          \test_betwnstr.sql

To execute all tests and map database source code into source file names you could use the following command in any SQL client:

begin
  ut.run(
    ut_varchar2_list('hr','hotel'),
    ut_coverage_html_reporter(),
    a_source_file_mappings =>
      ut_file_mapper.build_file_mappings(
        a_file_paths  => ut_varchar2_list(
          'sources\hotel\procedures\add_rooms_content.sql',
          'sources\hotel\procedures\remove_rooms_by_name.sql',
          'sources\hotel\tables\rooms.sql',
          'sources\hr\functions\betwnstr.sql',
          'sources\hr\procedures\award_bonus.sql',
          'sources\hr\tables\employees_test.sql'
          ),
        a_regex_pattern => '/(\w+)/(\w+)/(\w+)\..{3}$',
        a_object_owner_subexpression => 1,
        a_object_name_subexpression => 3,
        a_object_type_subexpression => 2,
        a_file_to_object_type_mapping => ut_key_value_pairs(
          ut_key_value_pair('packages_bodies', 'PACKAGE BODY'),
          ut_key_value_pair('types_bodies', 'TYPE BODY'),
          ut_key_value_pair('triggers', 'TRIGGER'),
          ut_key_value_pair('procedures', 'PROCEDURE'),
          ut_key_value_pair('functions', 'FUNCTION')
        )
      )
  );
end;

To execute all tests and map database tests code into test file names you could use the following command in any SQL client:

begin
  ut.run(
    ut_varchar2_list('hr','hotel'),
    ut_sonar_test_reporter(),
    a_test_file_mappings =>
      ut_file_mapper.build_file_mappings(
        a_file_paths  => ut_varchar2_list(
            'tests\hotel\packages\test_add_room_content.sql',
            'tests\hotel\packages\test_remove_rooms_by_name.sql',
            'tests\hotel\packages_bodies\test_add_room_content.sql',
            'tests\hotel\packages_bodies\test_remove_rooms_by_name.sql',
            'tests\hr\packages\test_award_bonus.sql',
            'tests\hr\packages\test_betwnstr.sql',
            'tests\hr\packages_bodies\test_award_bonus.sql',
            'tests\hr\packages_bodies\test_betwnstr.sql'
          ),
        a_regex_pattern => '/(\w+)/(\w+)/(\w+)\..{3}$',
        a_object_owner_subexpression => 1,
        a_object_name_subexpression => 3,
        a_object_type_subexpression => 2,
        a_file_to_object_type_mapping => ut_key_value_pairs(
          ut_key_value_pair('packages_bodies', 'PACKAGE BODY'),
          ut_key_value_pair('types_bodies', 'TYPE BODY'),
          ut_key_value_pair('triggers', 'TRIGGER'),
          ut_key_value_pair('procedures', 'PROCEDURE'),
          ut_key_value_pair('functions', 'FUNCTION')
        )
      )
  );
end;
